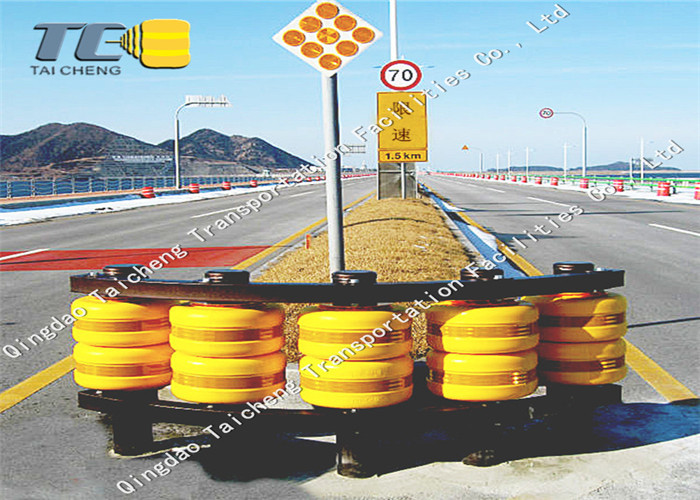

EVA material road rotating anti-collision bucket with reflective strip
The rotating bucket is made of composite material of EVA and polyurethane. This high-strength EVA and polyurethane material itself is elastic and anti-collision and wear-resistant, which can prevent the rotating bucket from being smashed when it is impacted, and effectively protect the guardrail and passengers. . In addition to good anti-collision and wear resistance, it also has the advantages of anti-chemical corrosion, anti-ultraviolet aging, and weather resistance.s.
Material characteristics: The rotating bucket is made of EVA and polyurethane composite material, which is elastic and anti-collision and wear-resistant, which can prevent the rotating bucket from being crushed when it is impacted, and effectively protect the guardrail and passengers. In addition to good anti-collision and wear resistance, it also has the advantages of anti-chemical corrosion, anti-ultraviolet aging, and weather resistance.
Product Structure
Parts and Installation:

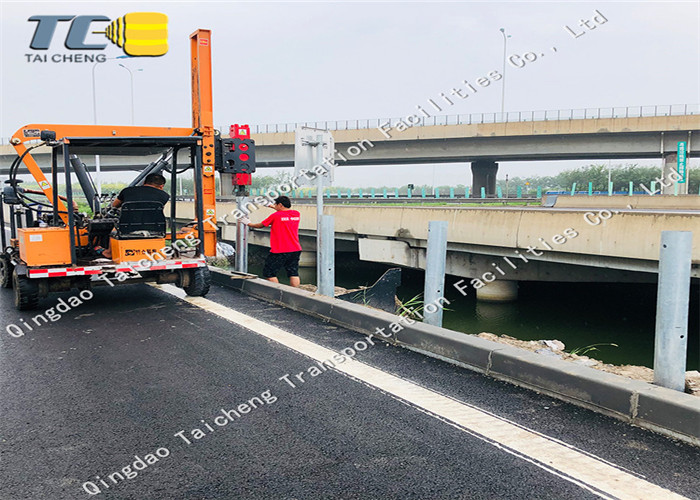

1) Column: It is driven into the roadbed and is the main force-bearing component.
2) Beam: It is used for the connection between the columns and to fix the rotating barrel.
3) Rotary barrel: It is fixed between the upper and lower beams and can be rotated around the column. The main materials are EVA (ethylene-ester acid copolymer) and polyurethane.
4) Sleeve: installed on the inner wall of the rotating barrel, the contact part of the rotating function.
5) Gyratory ring: Installed between the rotating barrel and the beam to balance and promote rotation.
6) Connecting frame: used for connection between beams.
7) U-shaped frame: connect the beam and the column to fix the beam.
8) Pad buckle: Lined with the beam and connected to the U-shaped frame.
9) Hoop: connecting beam and column, used to fix the beam, suitable for specific models.

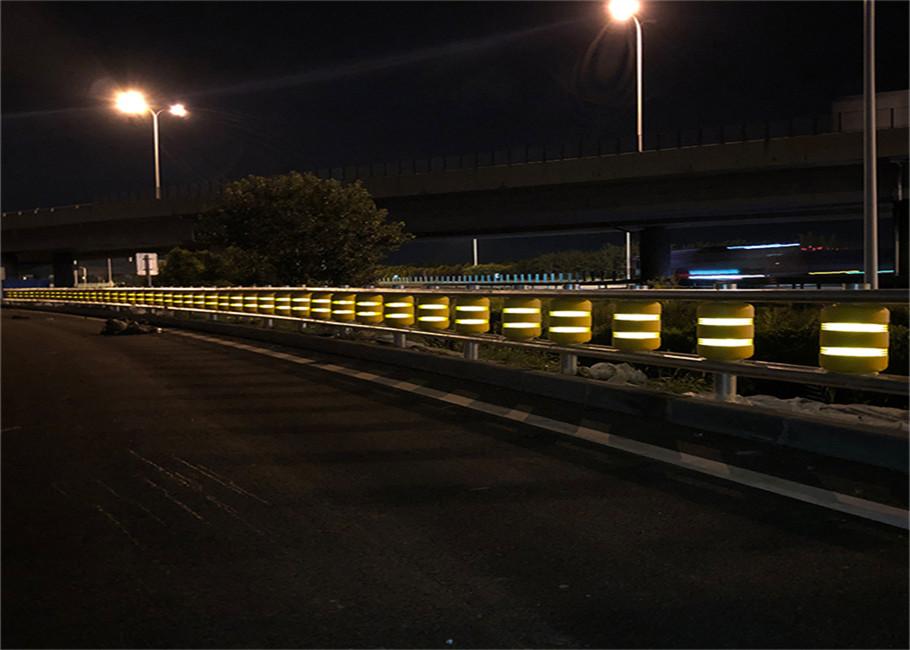

10) Reflective strips.•It is a reflective film, which is pasted on the rotating barrel and plays an inductive role.

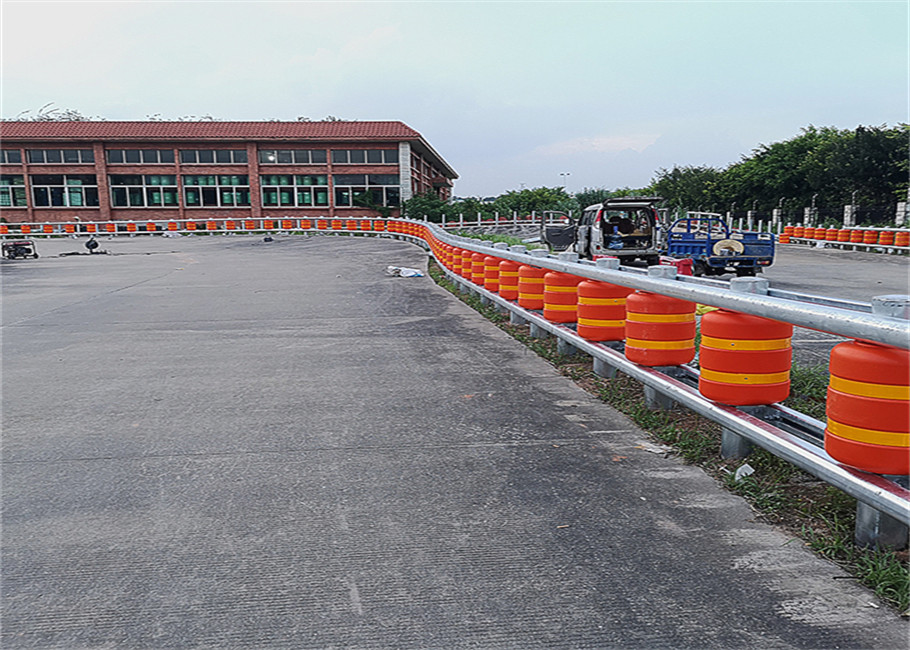

Scope of application: It is especially suitable for installation and application in accident-prone areas such as tunnel entrances, central isolation belts, sharp turning areas, and complex intersections. It is worth mentioning that the rotating barrel also has a strong resilience, even if it is severely impacted, it can immediately return to its original state.
